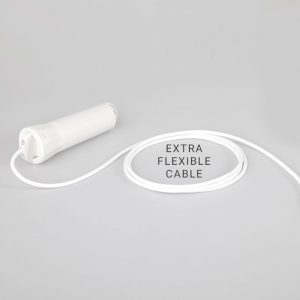

Aranet Medical Thermometer
Aranet Medical Thermometer is wireless, clinical-grade human body thermometer for safe remote monitoring in hospitals battling COVID-19. The sensor performs highly accurate measurements as well as it is flexible and easy to setup.
Aranet Medical Thermometer is Class I medical device according to Annex VIII to Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017 on medical devices (MDR).
Sensors are compatible only with Aranet PRO base stations
Measures: human body temperature
Range: -40 °C to 120 °C
Accuracy: (99 % confidence) ±0.1 °C
Line-of-Sight range: up to 3 km
Transmitter power: 14 dBm
Data Transmission: 1, 2, 5 or 10 minutes
Battery life: up to 12 years
Protection class: IP67
Dimensions: Ø 35 x 120 mm
Cable length*: 2 m
*Custom cable length up to 10 m available, minimum order quantity: 100 units.
Sensors are compatible only with Aranet PRO base stations
Measures: human body temperature
Range: -40 °C to 120 °C
Accuracy: (99 % confidence) ±0.1 °C
Line-of-Sight range: up to 3 km
Transmitter power: 14 dBm
Data Transmission: 1, 2, 5 or 10 minutes
Battery life: up to 12 years
Protection class: IP67
Dimensions: Ø 35 x 120 mm
Cable length*: 2 m
*Custom cable length up to 10 m available, minimum order quantity: 100 units.
| Aranet Medical Thermometer | |
| Measurements | Human body temperature |
| Range | -40 °C to 120 °C (-40 °F to 248 °F) |
| Resolution | 0.01 °C (0.01 °F) |
| Accuracy (99 % confidence) | ±0.1 °C (±0.2 °F) |
| Cable length | 2 m (6.6 ft) |
| Line of Sight Range | 3km (1.9 mi) |
| Supported ISM bands | EU868, NA915 |
| Transmitter power | 14 dBm |
| Data transmission (TX) interval | 1, 2, 5 or 10 minutes |
| Data protection | XXTEA encryption |
| Compatible base stations | Aranet PRO |
| Ingress Protection code | IP67 |
| Maximum operating temperature range | -40 °C to 60 °C (-40 °F to 140 °F) |
| Dimensions | Ø 35 x 120 mm (Ø 1.4 x 4.7 in) |
| Weight | 88 g (3.1 oz) |
| Enclosure material | ASA plastic |
| Included in the box | 1 AA Alkaline battery, string |
| Power | 1 AA battery |
| TX interval | Battery life @ 20 °C (68 °F) |
| Compliance | CE, IC, FCC |
| Part number | TDSPTK01 (EU), TDSPTKU1 (NA), TDSPTKR1 (RU) |
