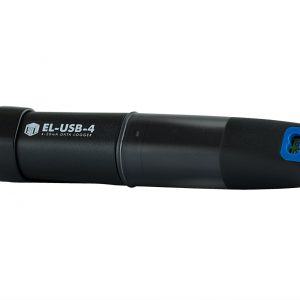

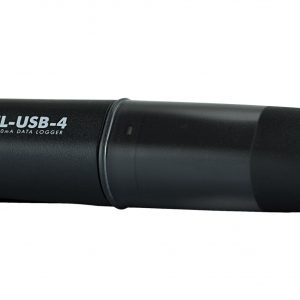

EasyLog Current Data Logger with USB
R$490,00

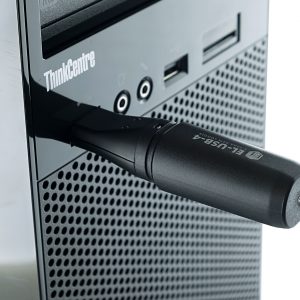

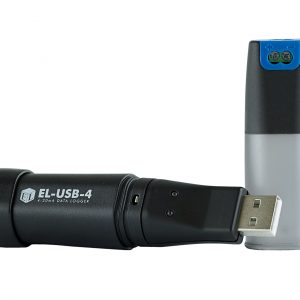

This standalone data logger measures more than 32,000 readings over a 4-20mA d.c. measurement range. The data logger is supplied with a cap featuring a pair of screw terminals and measurement leads terminating in crocodile clips. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.
Application
The EL-USB-4 is suitable for a wide variety of applications. This includes:
Outside Environmental Data
Specification
Measurement Range: 4 to 20mA d.c.
Internal Resolution: 0.05mA d.c.
Accuracy: ±1%
Input Impedance: 110 Ohms
Logging Rate: User selectable between 1 second and 12 hours
Operating Temperature Range: -35 to +80°C
Battery Life: 3 Years (at 25°C and 2 second logging rate)
Readings: 32.510
Dimensions: 98 x 26.8 x 26.8 mm
Application
The EL-USB-4 is suitable for a wide variety of applications. This includes:
Outside Environmental Data
